Full Motion Articulating Mount for 42 to 70

Full Motion Articulating Mount for 42 to 70
Click Image to Enlarge

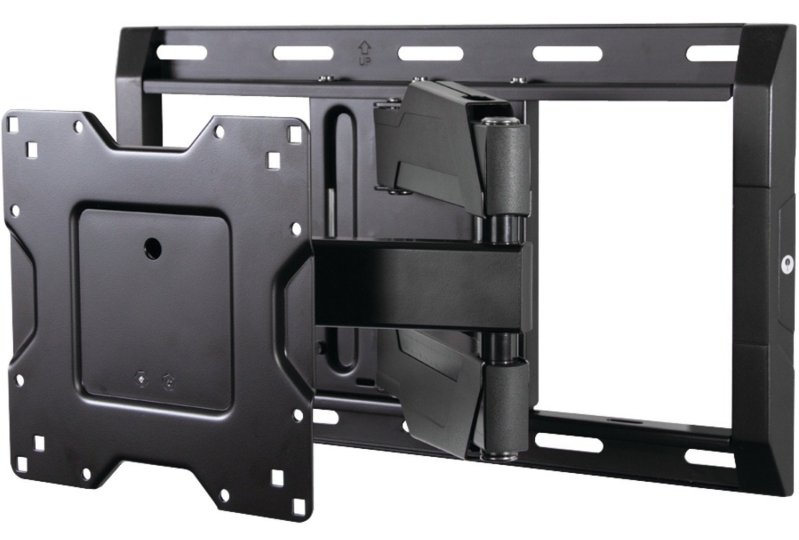

Full Motion Articulating Mount for 42 to 70
Item Number: OC120FM
Suggested Retail: $179.95
Our Price: $169.95
Quantity:
Usually ships the next business day
Free Shipping via UPS Ground


The OC120FM is ideal for consumers looking for a low-profile and easy-to-use large full motion mount.
  • Tilt forward or back to reduce glare or for overhead installations
  • Pan display left or right to view from multiple rooms or seating areas
  • Pull TV forward when mounted in a recessed space
  • Included adapters fit a wide range of VESA patterns
  • Lift n' Lock™ feature offers easy, three step installation
  • Cable management channels guide wires from TV to wall for a clean install
  • +/-3° post installation leveling
  • 2.9" (7.4 cm) of lateral adjustment makes TV centering possible
  • Open frame provides ample room for power and A/V cutouts behind TV
  • Wall plate and arm design complements TV whether extended or nested to the wall
  • Complete hardware kit included
  • Fits most: 43–70" TVs
  • Supports up to: 120 lbs (54.4 kg)
  • Tilt: +15° to -1°
  • Mounting profile: 3.8" (9.7 cm)*
  • Maximum extension: 18.8" (47.8 cm)*
  • VESA compliance: 200x200 to 600x400
  • Mounting: Double-stud or solid wall
  • Warranty: 5 years
  • Color: Black
  • UL Listed
  • *adapter adds .2" (0.6 cm


Product Details:
Maximum Weight

120 lbs
Tilt

0° to 15°
Mounting Hole Range
200 to 600 mm Wide

       200 to 400 mm
       High
This mount fits screens with mounting holes on the back that fall within the following range:

Horizontal (Left to Right) Hole Spacing
Between and

Vertical (Top to Bottom) Hole Spacing
Between and
Distance From Wall to Back of Screen3.8 to 18.8
ManufacturerOmniMount
